Alaska's First Seismic Station
Will Dienstfrey
Beth Grassi

With a current network of over 250 seismic stations, the Alaska Earthquake Center maintains an impressive seismic grid across the state. But how did it all begin?

In 1901, the U.S. Coast and Geodetic Survey—a predecessor of the U.S. Geological Survey and the first scientific agency of the U.S. government—constructed the Sitka Magnetic Observatory. Sitka was an optimal place to build this facility due to its relative accessibility (by boat or plane) and its small population, limiting human impacts on the measurements.

The station was originally built to obtain high-accuracy measurements of Earth’s magnetic field. A U.S. Coast and Geodetic Survey report from 1902 included field notes from H. M. W. Edmonds, the magnetic observer, who arrived in Sitka on July 15, 1901 to oversee construction. He wrote “The weather conditions were very unfavorable for the work of constructing the buildings on account of the almost incessant rain, and the buildings were not completed until October 16. The interior of the building was dried with difficulty, the instruments were installed, and the photographic record of the variation of the magnetic forces began on November 25.” (Figures 1 & 2).

The site quickly expanded, and in 1904, the first seismic station in Alaska was installed on the observatory grounds. The U.S. Coast and Geodetic Survey installed two horizontal pendulums (one oriented north–south, and the other east–west). When an earthquake or other seismic activity occurred, the ground motion would move the pendulums, and the movement of the pendulums was recorded on a rotating drum of paper (Figures 3 & 4). Like with modern seismometers, the information could then be used to locate and determine the size of the earthquake.

Edmonds included the first seismic update from Alaska in the 1904 U.S. Coast and Geodetic Survey report: “A seismograph was added to the instrumental outfit on November 14, and it was installed in a small room added to the astronomic observatory for that purpose. Observations with this were obtained on sixty-five days before the close of the year.” (The Survey’s report year ran July 1 through June 30.)

In 1940, the U.S. Coast and Geodetic Survey moved the seismic equipment to a new location in an approximately 1,100 square foot building. In a Survey report, William D. Patterson wrote “The building was formerly used by the Department of Agriculture as a root-cellar, and it was modified by the Coast and Geodetic Survey for use as a seismograph-vault, for which purpose it was admirably suited.The building is set into the side of a low hill and, except for the front wall, is covered with earth. The roof is an arched concrete slab, eight inches thick, supported by reinforced concrete beams and posts, with two concrete ventilators extending through the roof and earth-cover. The floor is of concrete; partitions are of wood. Tile-drains extend around the building and beneath the floor.”  (Figure 5)

The Sitka seismic station has evolved since it was first installed. Now housed in a building operated by the National Tsunami Warning Center, a modern broadband seismometer continues to record ground motion in this area. To this day, the Alaska Earthquake Center relies on the data from the Sitka station SIT to accurately locate earthquakes in Southeast Alaska.



Other resources:
R. E. Gebhardt. Sitka Magnetic Observatory of the United States Coast and Geodetic Survey. Journal of Geophysical Research: Terrestrial Magnetism and Atmospheric Electricity, pp. 319-323, Vol. 47, Issue 4, Dec. 1942. https://doi.org/10.1029/TE047i004p00319

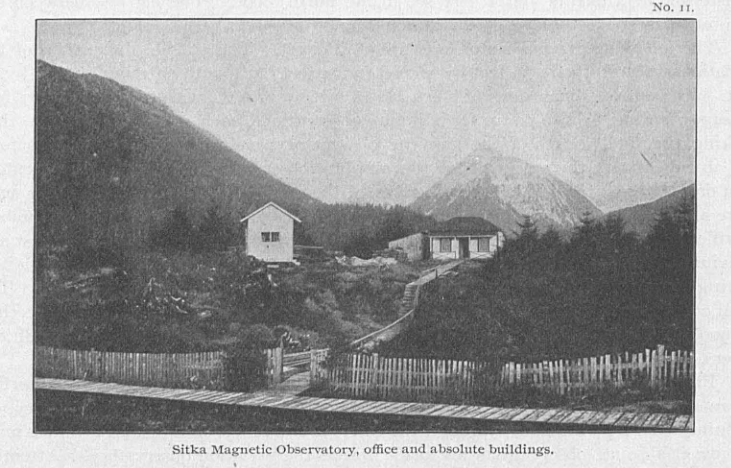

Old black-and-white photo of two white buildings behind a white fence with mountain in the background.
Figure 1. Views of the newly built observatory in Sitka in 1902. (Photo from the 1902 U.S. Coast and Geodetic Survey report).

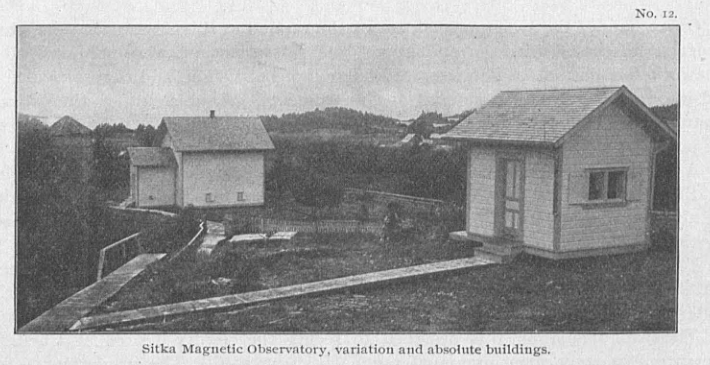

Old black-and-white photo showing two white buildings with wooden walkways between.
Figure 2: Views of the newly built observatory in Sitka in 1902. The building on the right is the magnetic instrument shed, about 10 feet x 12 ft. (Photo from the 1902 U.S. Coast and Geodetic Survey report).

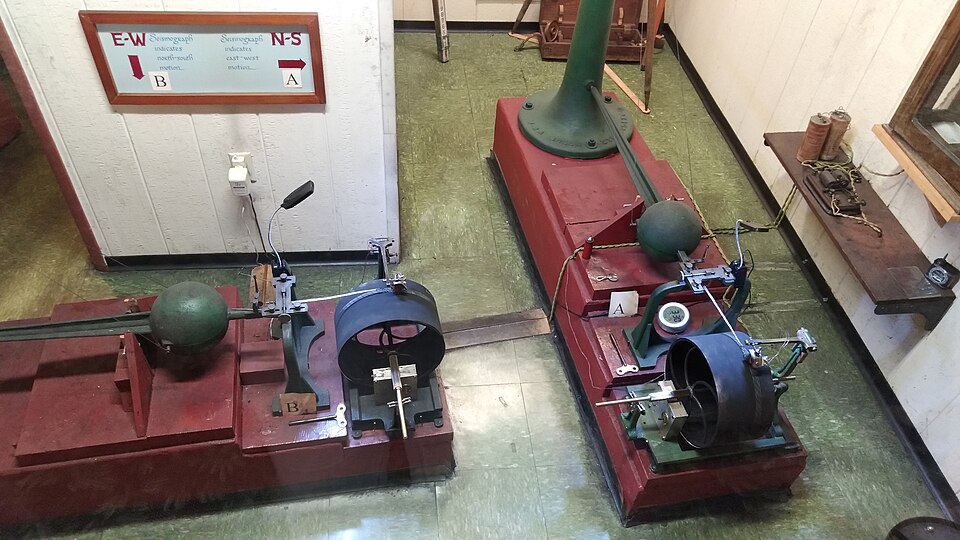

Two seismographs with large ball on horizontal arm attached to vertical post.
Figure 3. The first seismic instrument installed in Alaska was a Bosch-Omori seismograph, like this one on display at the Ferndale Museum in California. One horizontal pendulum (the large ball) measured north-south movement, one measured east-west movement. (Photo from Wikimedia Commons

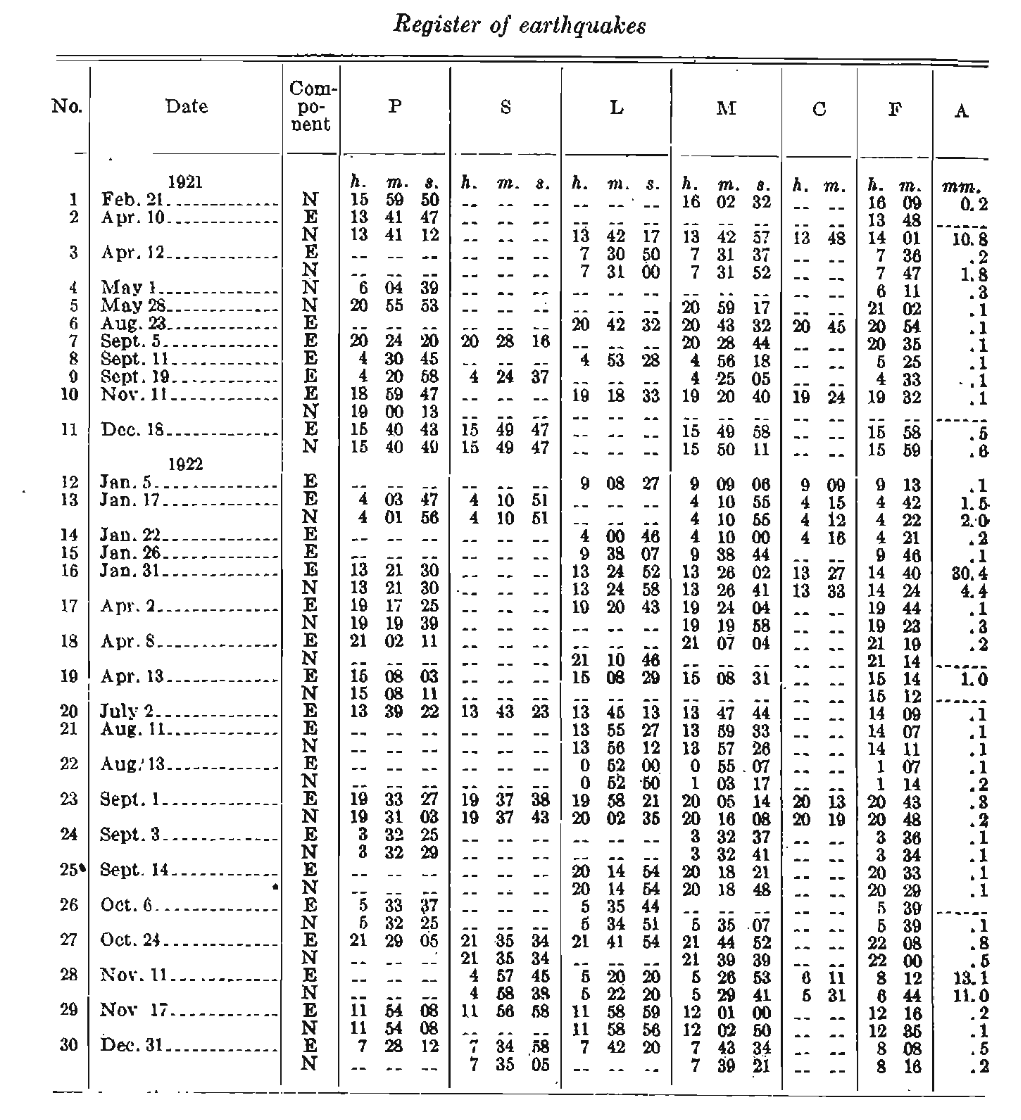

Chart showing earthquake information recorded in Sitka from February 1921 through December 31 1922.
Figure 4. This chart from a U.S. Coast and Geodetic Survey report from the Sitka observatory lists earthquakes recorded at the Sitka station in 1921 and 1922, using the Bosch-Omori seismograph installed in 1904. The author noted that “...the times are Greenwich mean time counted from midnight. The quantities given in the last column denote the actual movement of the stylus (one-half the maximum range) as measured on the seismogram.”

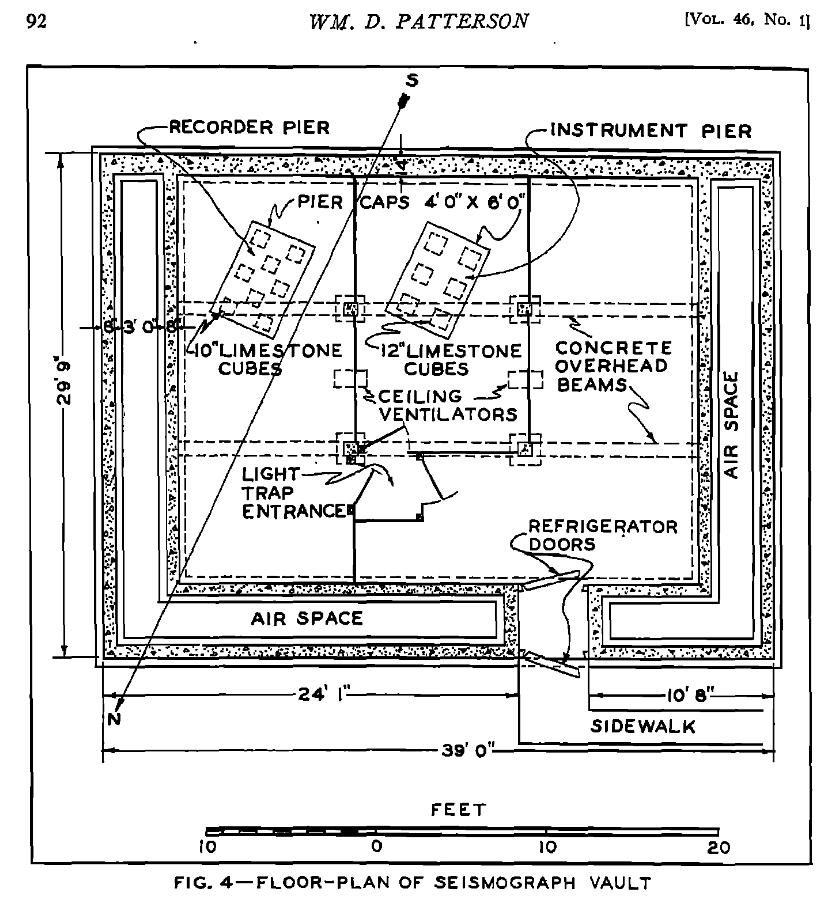

Floorplan schematic of seismic station building showint concrete slabs and ventilation.
Figure 5. The floorplan for the new seismic station building in Sitka, built in 1940. (Patterson, United States Coast and Geodetic Survey Ship Pioneer, 1941)
